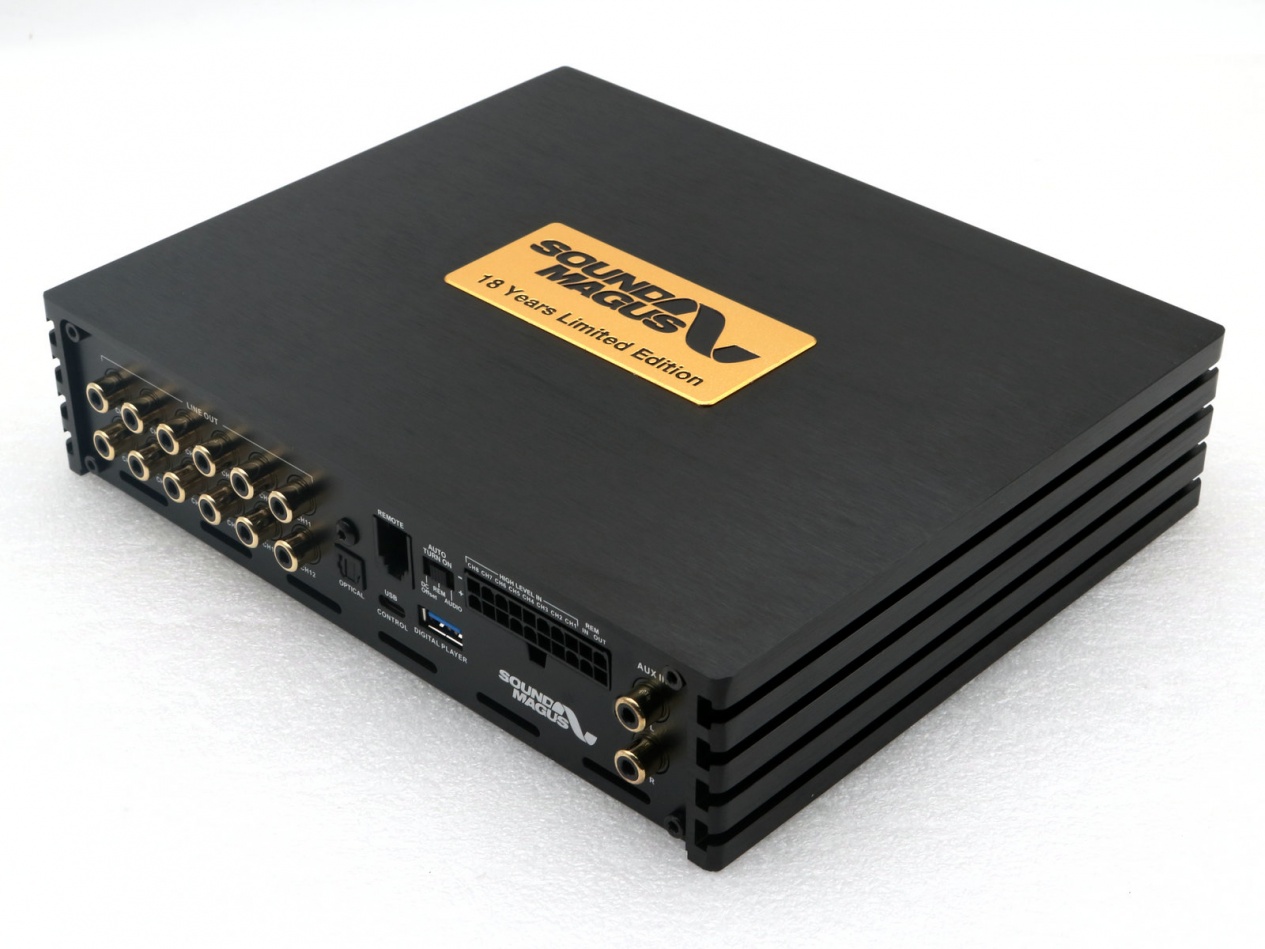

Soundmagus MP12MAX DSP

Model No. MP12 MAX
Rated Continuous (RMS) Power @ 14.4 V
4Ω stereo, ≦1% THD+N Class AB 20Wrms x 4 + Class D 100Wrms x 8
2Ω stereo, ≦1% THD+N CH9/10/11/12: 170Wrms x 4
4Ω Bridged, ≦1% THD+N CH9/10/11/12: 350Wrms x 2
Max Output Level(RMS)@1% THD 3.5V RMS(Pre Out)
General Specifications Frequency Response 10HZ~21KHZ(-3dB)
S/N Ratio @ 1W(AMP) 75dB (A-weighted)
S/N Ratio @20W(AMP)/100W(AMP) 88dB (A-weighted)
S/N Ratio @ 1V(Pre out) 85dB (A-weighted)
Channel Separation >70dB
Auto Turn On Audio/REM/DC offset
Input Impedane 22Kohm (Lo-Level) / 10 Ohm(Hi-Level)
Application Windows PC software Remote control (optional) DWC-02 / DSD PLAYER-2
Input Sensitivity 0.4V-10V (Hi-Level) /0.2~2V(AUX)
Digital Inputs Bluetooth / Optical / DSD PLAY
Analog Inputs 2 Channel (AUX) / 8Channel(Hi-Level)
PreAmp Outputs 12Channel
Operating Voltage: 8.2V - 16V DC
Protection overload, short circuit, overheating, undervoltage, overvoltage Power / Ground Wire 6-8AWG
Fuse Rating 80A
Signal Processing
Equalization 10 Band EQ/31 Band EQ
Crossover FULL/HP/LP/BP
Phase 0/180
Filter Slope (dB/Octave) 6/12/18/24/30/36/42/48 (Butterworth) & 6/12/18/24/30/36/42/48 ( Linkwitz)
Delay 0~25ms(0.01ms increments) /0~850cm/ 0~334in
Input Sum YES
EQ View YES
DSD Play Music Format Support 24 bit 192KHz APE/FLAC/WAV, DSD64/128/256, MP3, WMA, AAC, OGG, AIFFetc. Setup 4
Physical Specifications
Height (H) 53
Width (W) 229
Length (L) 203
