Adjustable Smart Template Axis Shape Creator for milling can be used in car audio, furnirure production and other manufactures.
Manufactured with ABS Plastic, thickness 6mm. Width 40mm.

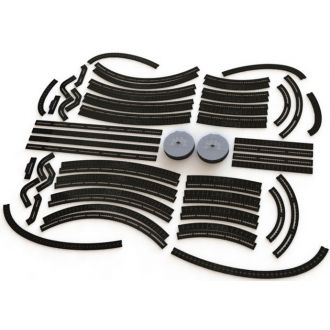

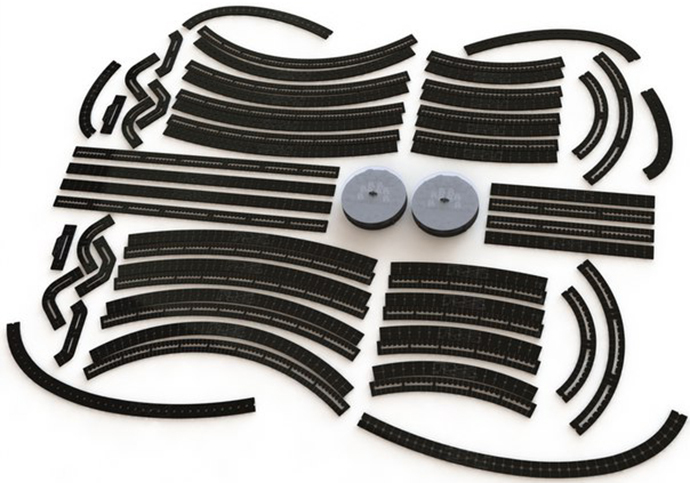

“Pro” package includes:
- Organaizer/hardware tray, 2 pc. (1 tray contains 8 pairs of set: 1 screw+1 plastic washer+ 1 butterfly-screw)
- Arc axis 450 r600 adjustment rail, 2 pc.
- Arc axis 450 r600 rail, 2 pc.
- Arc axis 450 r900 adjustment rail, 2 pc.
- Arc axis 450 r900 rail, 2 pc.
- Arc axis 450 r1300 adjustment rail, 2 pc.
- Arc axis 450 r1300 rail, 2 pc.
- Arc axis 450 r1550 adjustment rail, 2 pc.
- Arc axis 450 r1550 rail, 2 pc.
- Arc axis 800 r600 rail, 2 pc.
- Arc axis 800 r600 adjustment rail, 2 pc.
- Arc axis 800 r900 rail, 2 pc.
- Arc axis 800 r900 adjustment rail, 2 pc.
- Arc axis 800 r1300 rail, 2 pc.
- Arc axis 800 r1300 adjustment rail, 2 pc.
- Arc axis 800 r1550 rail, 2 pc.
- Arc axis 800 r1550 adjustment rail, 2 pc.
- Arc axis r200 adjustment rail, 2 pc.
- Arc axis r320 adjustment rail, 2 pc.
- Straight axis 470, 2 pc.
- Straight axis 470 adjustment rail, 2 pc.
- Straight axis 920, 2 pc.
- Straight axis 920 adjustment rail, 2 pc.
- Straight connector, 2 pc.
- Small corner, 2 pc.
- Big corner, 2 pc.
- Corner r55, 2 pc.
- Corner r30, 2 pc.
- Ellipse-shape part 290×173, 1pc.
- Ellipse-shape part 490×280, 1pc.
- Ellipse-shape part 740×413, 1pc.
- Ellipse-shape part 290×173 specular, 1pc.
- Ellipse-shape part 490×280 specular, 1pc.
- Ellipse-shape part 740×413 specular, 1pc.
- Package size: 930x360x105 mm.
- Weight: 8,5 kg.
