Power your car audio system from a standard AC wall outlet—without running your vehicle.
The Massive Audio HPS100 converts 110–130V AC household power into adjustable 1–16V DC power, delivering over 100 amps of DC current to power car audio amplifiers and other 12V equipment outside of a vehicle's normal electrical system.
Perfect for showroom displays, demo boards, car shows, test benches, and other stationary car audio installations, the HPS100 provides regulated DC power without relying on your vehicle's alternator or draining its battery.
Need more current? The HPS100 is linkable, allowing multiple units to work together to supply over 400 amps of DC current for larger, high-power systems.
Built for demanding applications, the HPS100 features an adjustable regulated voltage output up to 16V, triple internal cooling fans, a remote-mount LCD voltage display, and automatic overload protection.
- Adjustable Regulated Output Voltage 9~16V
- Up to 100 Amp Output Current
- Digital Voltage Display
- Triple Cooling Fans
- Thermal/ Current Overload Shut-Off Protection
- Combo Output Connectors Act as Both Binding Posts & Banana Plug Terminals
- Remote Mount LCD Voltage Display

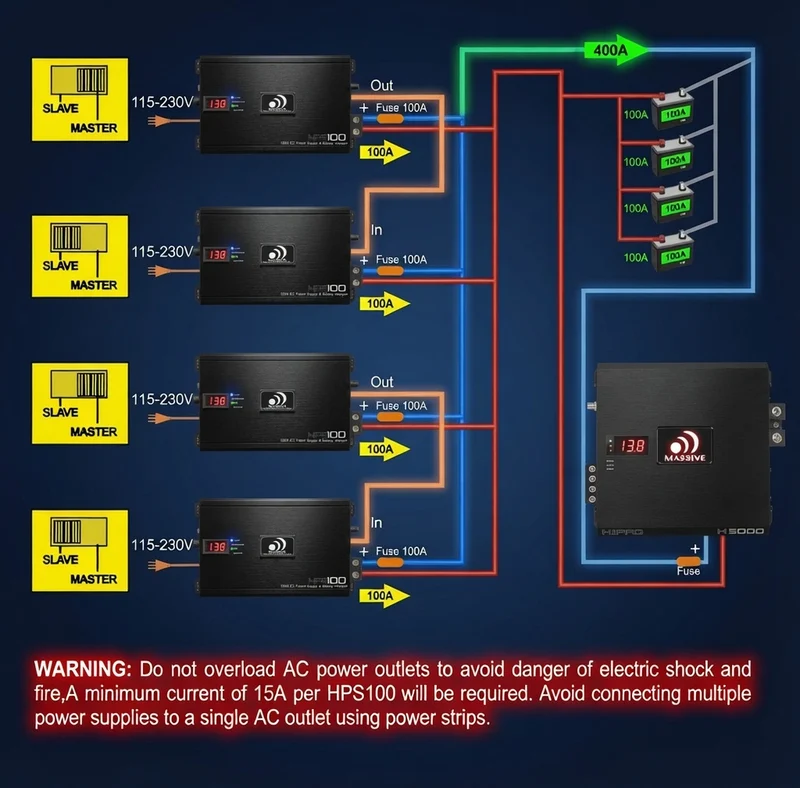

- Link Up to 4 Units for Up to 400 Amps of Current
- The HPS100 Converts standard 115-230V AC Household Power to an Adjustable 9~16V DC Power and Supplies Up to 100 Amps Continuously
- The HPS100 is a Multi-Purpose Unit, Great for Showroom Displays, Car Show Events, Demos, and Test Benches
| Design | Switching Type |
| Input Voltage | 115V-230V AC ± 10% |
| Cooling Fan | 3 pcs (30mmx30mmx10mm) |
| Adjustable Output | 9V~16V DC ± 0.5 Volts |
| Output Current | 100 Amps DC Continuous (Maximum) |
| Line Regulation | Less Than ± 5% |
| Load Regulation | Less Than ± 5% |
| Efficiency | ±85% |
| Overload Protection | Fuse 15A/250V |
| Output Ripple | 150MV RMS |
| Protection Temperature | 75°C |
| Power Switch | 15A/ 250V AC |
| Dimension | 2.2"H x 7.5"W x 11.9"L |
AC power in. Car audio power out.
