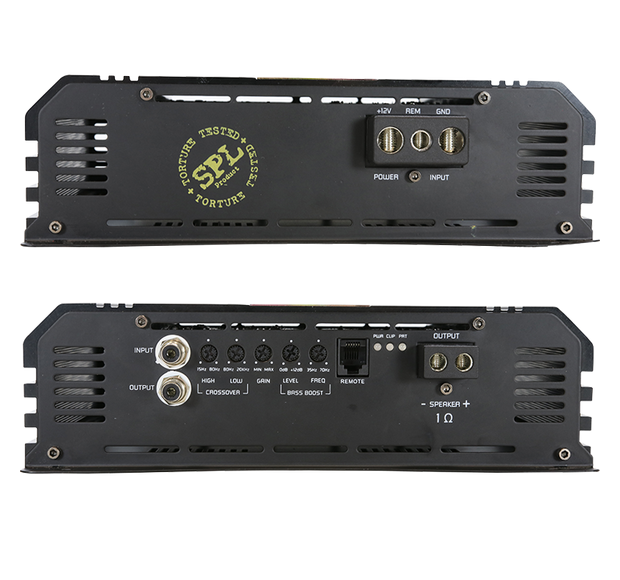

Ground Zero GZCA 1500.M1 1-channel amplifier
Main Page > Caraudio > Ground Zero > Vahvistimet
Serie
Manufacturer
Product code
GZCA 1500.M1
EAN
4037072024012
Available
Available
Delivery time from
3-5 days
Delivery costs from
Ground Zero′s class D high-power amplifiers have become a benchmark delivering a huge amount of output power for any kind of open show or SPL application. The latest generation starts with the launch of some models covering the essential demand of subwoofers at rated 1500 up to 5000 Watts. Bass remote control is included in the package.
- RMS Power @ 4 Ω (@ 100 Hz) * 500 W (1% THD+N)
- RMS Power @ 2 Ω (@ 100 Hz) * 900 W (1% THD+N)
- RMS Power @ 1 Ω (@ 100 Hz) * 1350 W (1% THD+N)
- Max. Power @ 1 Ω (@ 100 Hz) 1500 W (10% THD+N)
- Low pass filter 80 Hz – 22 kHz (12 dB/oct)
- High pass filter 15 Hz – 80 Hz (12 dB/oct
- Frequency response 10 Hz – 22 kHz (± 3 dB)
- Total harmonic distortion (THD+N) 0.05%
- Damping factor 100
- Signal-to-noise ratio 90 dB
- Input sensitivity 170 mV – 10 V
- Input Impedance 20 kΩ
- Rec. speaker wire ≥ 4 mm² / 11 AWG
- Rec. power wire ≥ 35 mm² / 2 AWG
- Max. current 140 A
- Dimensions w x h x l (heatsink / overall) 230 x 67 x 118/142 mm
- Dimensions w x h x l (heatsink / overall) 9,06“ x 2,64“ x 4,65“/5,60“.
