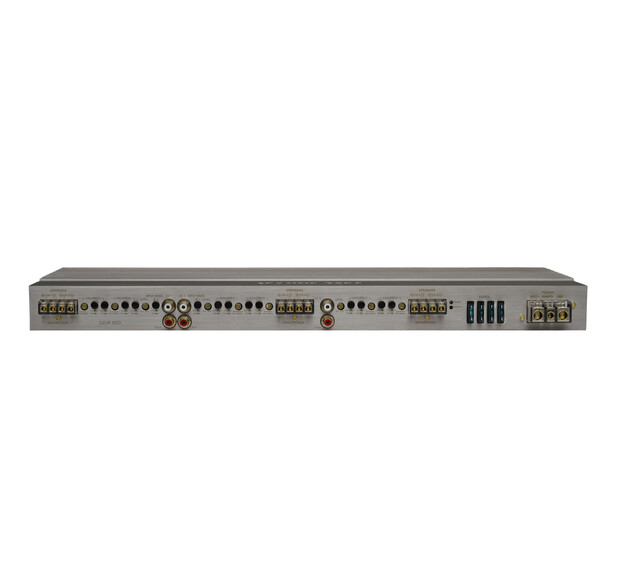

Ground Zero GZUA 6SQ 6-Channel SQ Amplifier
Main Page > Caraudio > Ground Zero > Vahvistimet
Serie
Manufacturer
Product code
GZUA 6SQ
EAN
4037072024616
Available
Available
Delivery time from
3-5 days
Delivery costs
Ground Zero Uranium 6-channel high-end class A/B SQ amplifier. 2 ohms stable (stereo operation) Adjustable BIAS setting Adjustable high and low pass filters with wide bandwidth Bandpass function with activated high and low pass filter Adjustable input sensitivity Power on delay Temperature / short circuit / overload protection
6-channel high-end class A/B SQ amplifier
Output power:
- 4x 110 W RMS + 2x 160 W RMS @ 4 ohms
- 4x 175 W RMS + 2x 280 W RMS @ 2 ohms
- 2x 425 W max. + 1x 650 W max. @ 4 ohms (bridged)
- 2 ohms stable (stereo operation)
- THD+N 0.01%
- Frequency Response 10 Hz - 70kHz ( -3dB )
- LPF: 20 Hz - 400 Hz / 200 - 4000 Hz ( x10 )
- HPF: 20 Hz - 400 Hz / 200 - 4000 Hz ( x10 )
- Band Pass Filter 20 Hz - 4000Hz ( x10 )
- SNR: 110dB
- Damping Factor: 800
- Adjustable BIAS setting
- Adjustable high and low pass filters with wide bandwidth
- Bandpass function with activated high and low pass filter
- Adjustable input sensitivity
- Power on delay
- Temperature / short circuit / overload protection.
Dimensions:
- 209 x 48 x 550 mm
