3 (2+1) WAY COMPONENT SPEAKER SYSTEM

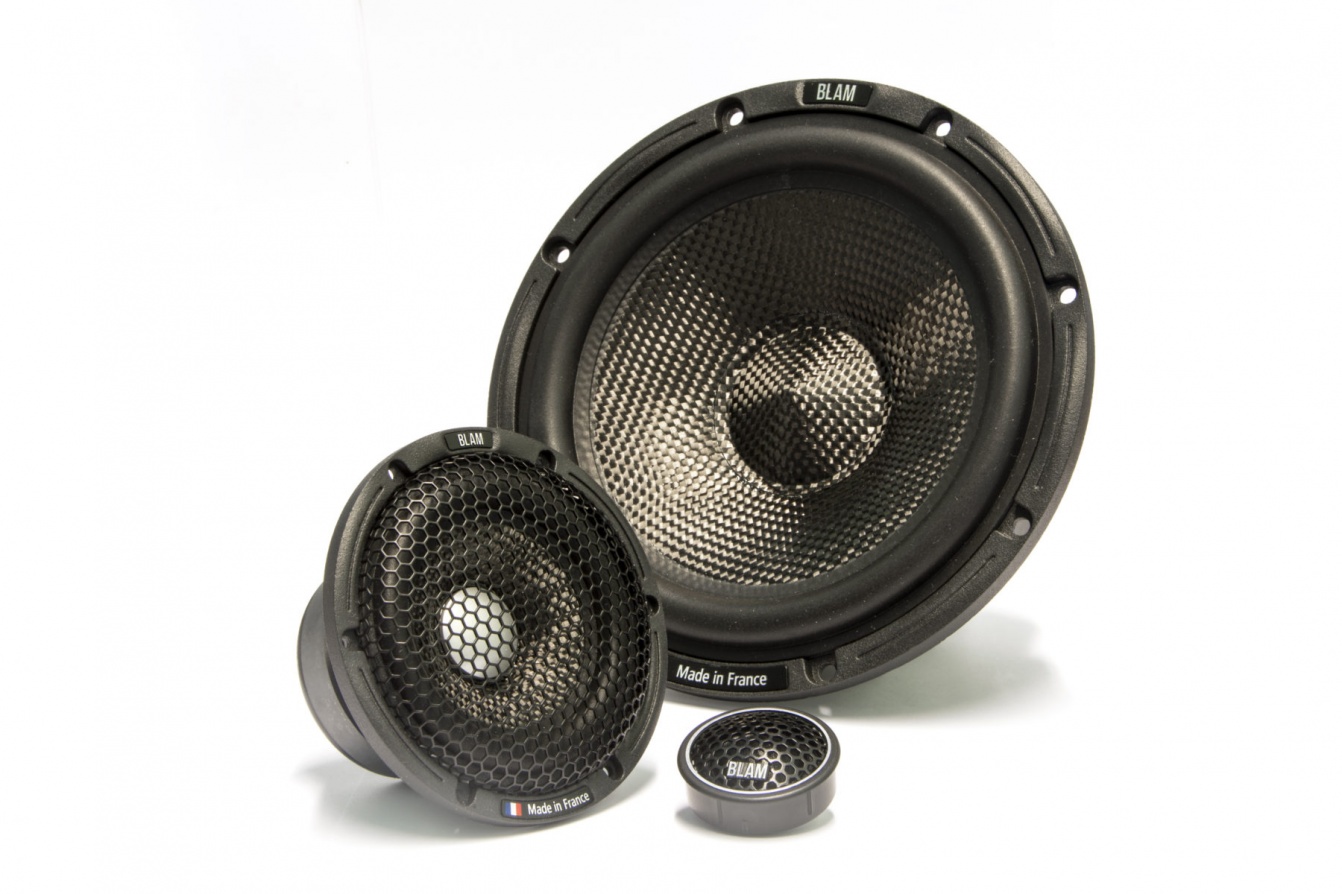

System includes two 165 mm (6,5”) woofers, two 80 mm (3”) midranges, two 20 mm (3/4’’) textile dome tweeters and 2 external 6/12 dB/octave external crossovers with adjustable tweeter level: +3 dB 0 dB or -3 dB.
Composition
WS 6.300 HIGH POWER WOOFER
- Woofer 6.5” (165 mm)
- Max power 250 W / Nom. power 125 W
- Frequency response 50 Hz – 5 kHz
- Sensitivity 93.2 dB – Impedance 2 Ω
- Die cast aluminum: basket – Ultra rigid carbon fiber cone – NBR surround – Long life « conex » spider – 38 mm voice coil, fiber glass former – 100 x 20 mm Oversized magnetic motor – Gold-plated terminal.

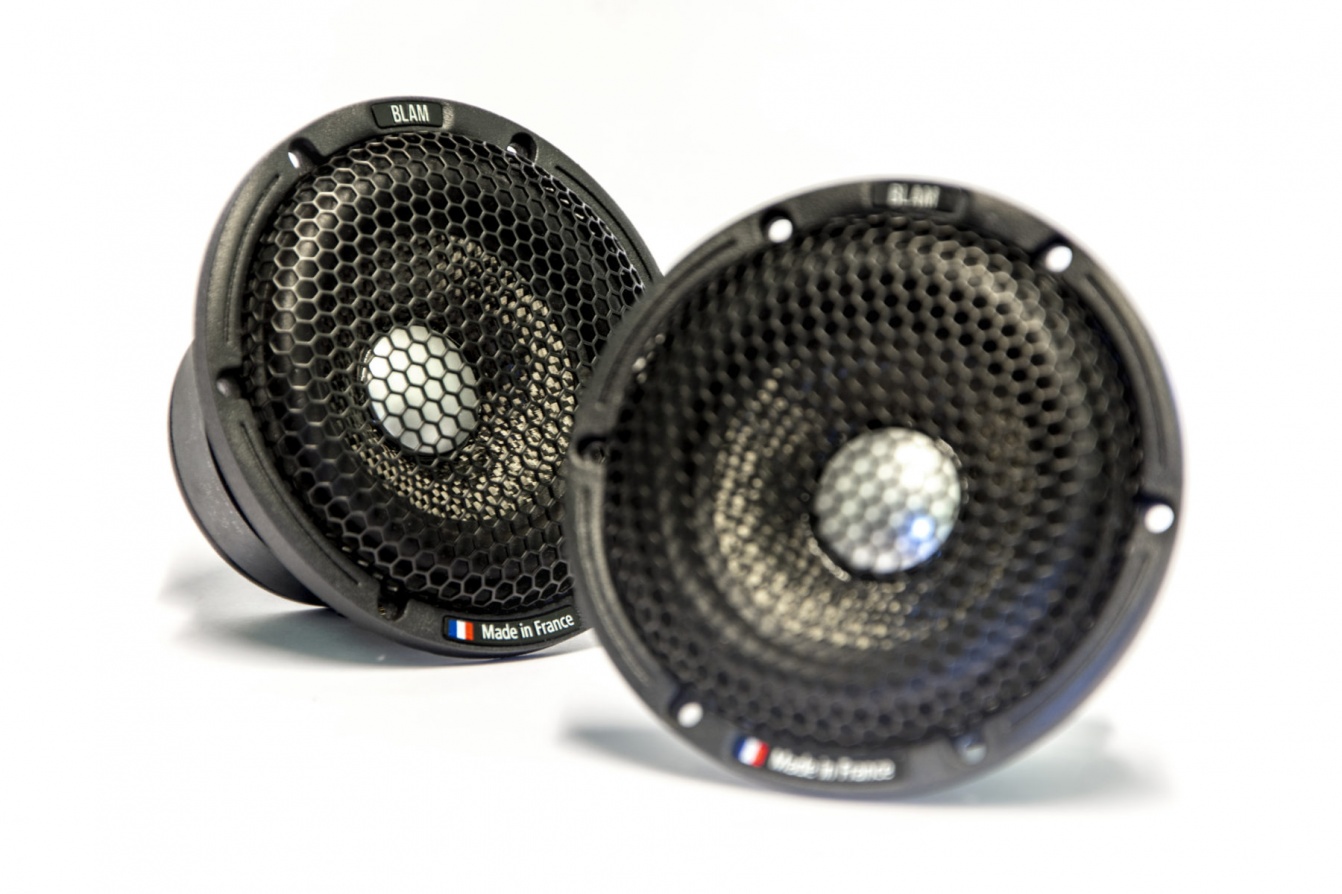

MS 3.55 HIGH EFFICIENCY MIDRANGE DRIVER
- Extended frequency 80 mm (3”) midrange
- Frequency response 200 Hz – 27 kHz
- Die cast aluminium basket – Ultra rigid carbon fiber cone – NBR surround – Long life « conex » spider – 20 mm voice coil, fiber glass former – 55 x 10 mm Oversized Magnetic motor – Aluminum dust cap – Gold-plated terminal.
TS 20 HR HIGH RESOLUTION TWEETER
- 20 mm (3/4’’) textile dome diaphragm
- Frequency response 2.5 kHz – 43 kHz
- Sensitivity 88.3 dB – Impedance 5 Ω
- Compact mounting dimensions – High efficiency magnet (N38H neodymium) – Ferrofluid for high power handling.
BFX 03 AUDIOPHILE GRADE CROSSOVER
- 6/12/12 dB / octave 2+1 ways audiophile grade crossover
- Crossover point: woofer/midrange: 300 Hz
- Super tweeter hi-pass: 10 kHz
