Features

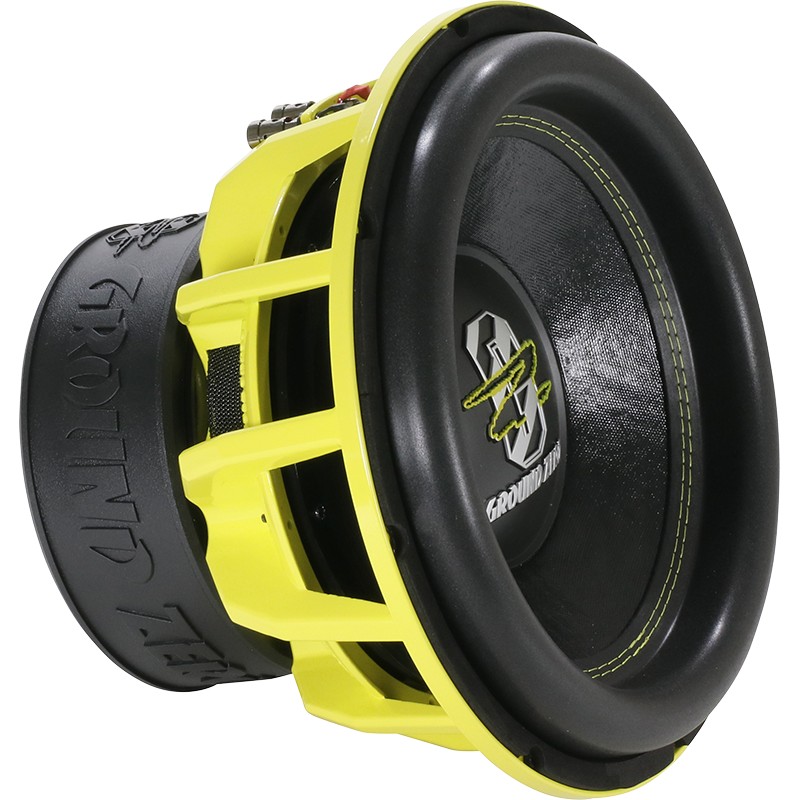

- High power 12” SPL subwoofer
- Klippel® optimized
- Efficient triple magnet
- Massive aluminum cast basket
- Reinforced paper cone
- 3” copper voice coil
- High-Roll sandwich surround
- Double spider
Technical data
- Model: GZHW 30SPL
- Diameter: 300 mm / 12″
- Mounting diameter: 315 mm / 12.4“
- Mounting depth: 198 mm / 7.8“
- Voice coil: 75 mm / 3” copper voice coil
- Cone: Reinforced paper
- Power Handling: 3000 W SPL Power
- Impedance: 2 x 1 Ohm
- SPL: 85 dB
- Xmax: 45 mm / 1.77″
- Fs: 35.4 Hz
- Qts: 0.44
- Vas: 15.8 L / 0.56 cu.ft.
- Box recommendation vented: See owners manual
- Box recommendation sealed: See owners manual
