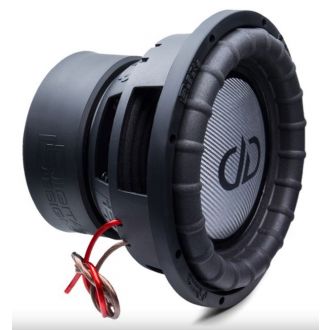

DD Audio 3510G on 10-tuumainen subwoofer 3500-mallistosta. HUOM! kuvassa Platinum custom versio.
- MODEL 3510 (ESP)
- Driver Size: 10"
- Power Band - Watts 600 - 1200
- Burst Power - Watts 4800
- VCD: 3"
- Impedance: D2
- Piston Dia: 9.25"
- Fs: 41.72 Hz
- Qms: 6.607
- Qes: 0.532
- Qts: 0.492
- Vas: cu ft 0.534
- Xmech: 80 mm
- Xmax: 17 mm
- Cutout Diameter: 10.187"
- Mounting Depth: 7.5"
- Motor Diameter: 7.687"
- Driver Displacement_ cu ft 0.12
- Shipping Weight: 37 lbs
- Sealed Enclosure: cu ft N/A
- Ported Enclosure: cu ft 1.25 - 1.75
