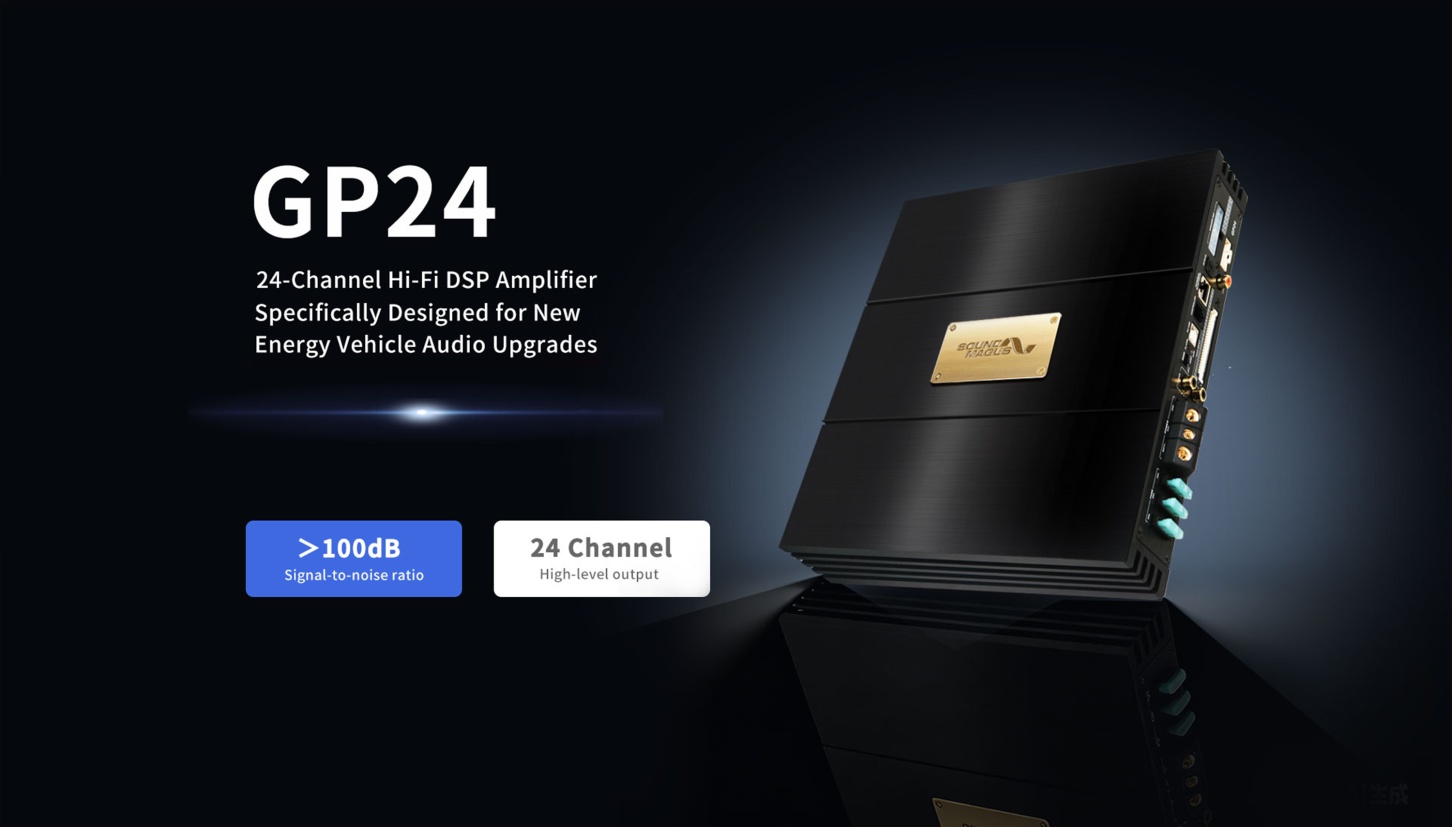

Soundmagus GP24 DSP

SpecificationsPower SupplyOperating voltage range DC 9.0 - 17VAuto Turn On ACC or High level turn on(high level input CH1 only)Standby power consumption <0.05WREM OUT output voltage DC12.0V (300mA)InputAnalog input 24-channel high-level: 28Vpp / 32Vpp / 50Vpp optional2-channel low-level (AUX): 6.5VppDigital audio input 1 optical input, 1 coaxial inputInput impedance Low-level: 10KΩ, High-level: 4.7ΩBluetooth External Bluetooth: Bluetooth5.0, supports AAC/APTX-L/APTX-LL/APT-HD/MP3/SBC and other protocols / wired OTGOutputOutput channels 24-channel high-level + 24-channel low-levelLow-level output signal 6.5Vpp (14.4V , 1KHz , 1%THD)High-level output rated power 8 x 25W + 16 x 80W ( 4Ω , 14.4V , 1KHz , 1%THD ) Ch21 - Ch24 bridged：2*150W (2Ω，14.4V，1KHHigh-level output MAX power 8 x 50W + 16 x 160W ( 4Ω ) Ch21 - Ch24 bridged：2*300W (2Ω)System sampling rate 48KHz / 24BitFrequency response range(-3 dB) 20Hz~ 20KHzTHD (1KHz, 1V rated output) 0.01％S/N ratio(1KHz. A-wt. THD=1%) >100dBChannel separation@ 1KHz >75dBOutput signal crossover Independent HPF, LPF filter for each channelFilter type: Linkwitz-Riley / Butterworth / BesselFilter frequency: 20Hz ~ 20KHz, resolution 1HzFilter slope: 6dB/Oct ~ 48dB/OctOutput Channel Equalizer 31 independent equalizers per channel, type: parametric and graphic equalizerFrequency：20Hz～20KHz，resolution 1HzQ value：0.404～28.852Gain: -12dB ~ +12dB, step: 0.1dBOutput Phase Each channel independent adjustment: normal phase/reverse phase; 0 ~ 360° equalization adjustmentOutput Delay Each channel independent adjustment: 0 ~ 20ms / 0 ~ 692cm / 0 ~ 272.8inchOutput Volume Each channel independent adjustment: -60dB ~ 0dB, step: 0.1dBTotal volume adjustment: -60dB ~ 6dBShutdown Delay Adjustment Range0 ～ 255SControlTuning method PC tuning (driver-free) / mobile app tuning (requires external dedicated Bluetooth module)Remote control wired remote control / mobile app control (requires external dedicated Bluetooth module)Product DimensionNet weight 3.7kgDimensions 263mm x 288mm x 50 mm(length x width x height)
