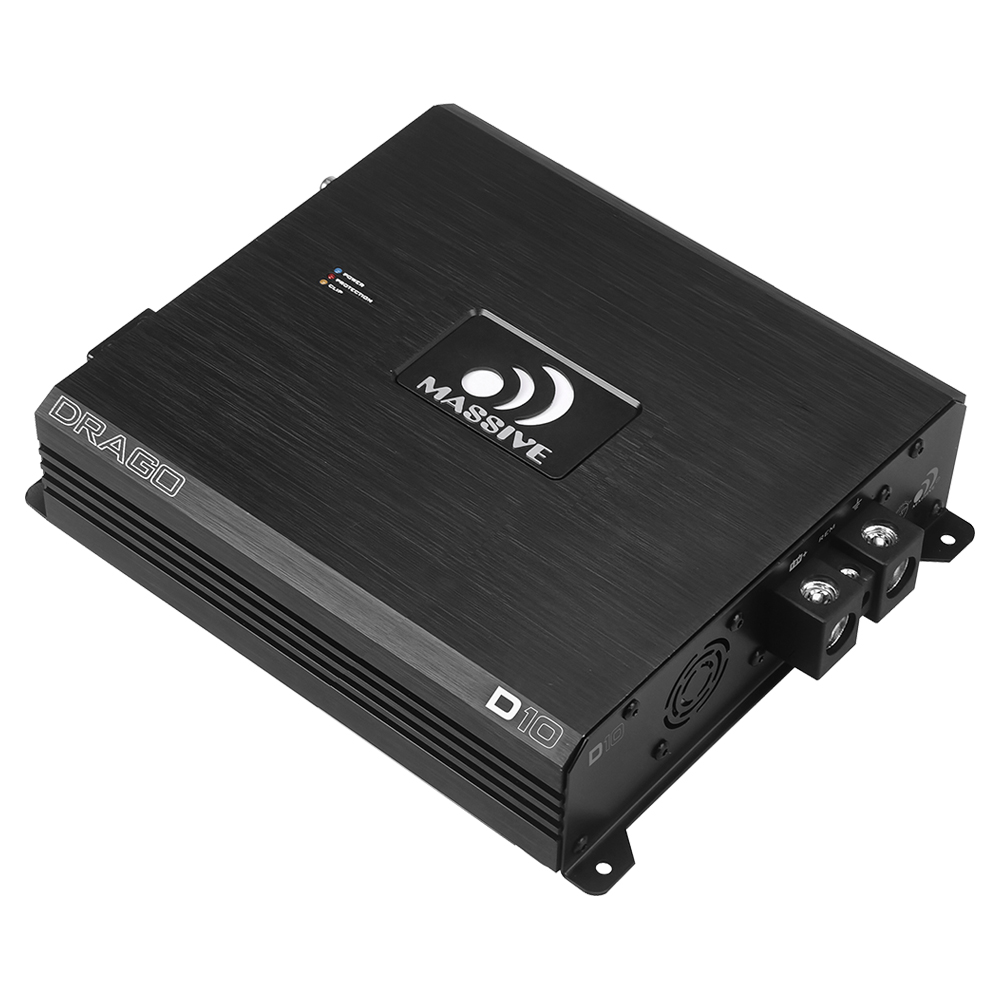

The D10 “Fire Breathing” Class D Full Range Micro Sized Monoblock DRAGO amplifiers from Massive Audio are designed to produce maximum power for the ultimate audio systems with the most efficient and stable power supply ever designed. DRAGO amps can handle loads as low as 1 Ohm and deliver “thousands” of RMS power at Full Range. DRAGO D10 is a Micro Sized Full Range Mega Amplifier allowing customers to utilize huge amounts of power in small areas. Onboard Fans help keep this powerhouse cool while other features like Clip Indictors and Hi-Low via RCA inputs and Band Pass Crossover Settings make this one of our most impressive and powerful amplifiers to date!
FEATURES:
- Extreme power in a small footprint
- 1 Ohm stable design (Mono Amps)
- Mil spec double sided & 2 layers PCB design with SMD parts
- Built-in noise reduction circuitry
- Full MOSFET with high grade switching devices
- 0~10DB variable bass boost
- Next generation advanced 5 way protection circuitry
- Built-in strong fans for excellent cooling
- With bandpass adjustment
- Full range frequency response is 10Hz-20KHz
SPECIFICATIONS:
| RMS Power | 5,000w x 1 |
| PEAK Power | 10,000w x 1 |
| RMS @ 2 Ohms | 2,500w x 1 |
| Min Impedance | 1 Ohm |
| LPF | 10Hz ~ 20KHz |
| HPF | 90Hz ~ 2KHz |
| THD | <0.3% @ 4Ohm |
| S/N | >90 dB |
| Input Level | 150mV |
| External Fuse | 450A |
| Freq. Response | 10Hz ~ 20KHz |
| Dimensions | 2.2 (in) H x 8.0 (in) W x 9.1 (in) L |
| Bass Remote | UR1 - Optional |
