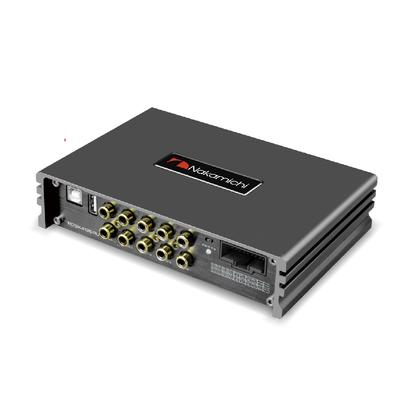

NAKAMICHI NDSK4185AU
PRODUCT DATA
| Dynamic Range(RCA Input) | ≥100dB |
| S/N(RCA Input) | 0~22dB |
| Frequency Response | 20Hz~20KHz |
| Input Impedance | High Level Input:240Ω |
| Low level Output Impedeance | ≤100Ω |
| Signal Input | RCA Input:8Vpp;High Level:26Vpp |
| Output Range | RCA Output:12Vpp;Amplifier:4×80W |
| Power | DC9V-16V |
| REM Input | High Level Input Signal:FL+/FL-or ACC control cable |
| REM Output | +12V Startup Voltage Output |
| Standby Power | ≤0.1W |
| Gross Weight | Approx. 0.7kg |
| Box Dimension(L×H×W) | 174.5×120×40mm |
TECHNICAL SHEET
| Input Signal Type | 4 Channel high level,supports internal Bluetooth and USB music playback |
| Output Type | 8 Channels low level,4 Channels 80W power |
| Output Gain | Gain range:Mute,-59dB~6dB |
| Output Signal EQ | 31-band EQ for every channel, |
| Output Signal Crossover | Equipped with high and low pass filters. 1.Professional filter type:Butter-W, Bessel,Link-Rill 2.Filtering Crossover Point: 20Hz~20kHz, Resolution 1Hz 3.Filter Slope setup:6dB/Oct ~ 48dB/Oct |
| Output Phase and Time Alignment | Adjust phase and time alignment for every output channel : In Phase or Out Phase(0°-180°); Time Alignment: 0.000 to 20.000 milliseconds, 0 to 692 cm,0 to 273 inch. |
| Presets | Save 6 presets into the device. |
